Description
- Inner x Outer x Depth (mm): 30.15 x 41 x 6.5
- Inch Dia: 1-1/8”
- Angle / Chamfer (Deg): 45 / 45
- Bearing ID: 30.15mm
- Bearing OD: 41.0mm
- Bearing Thickness: 6.5mm
- Internal Angle: 45 Degrees
- External Angle: 45 Degrees
- Material: Bearing Steel
- Grease: Mobil XHP-222 or SINOPEC HTHS
- Bearing Grease Seal: Double-sealed 2RS
- Material: Chrome Steel 100Cr6 (Race & Balls)
- Cage Material: Nylon PA66

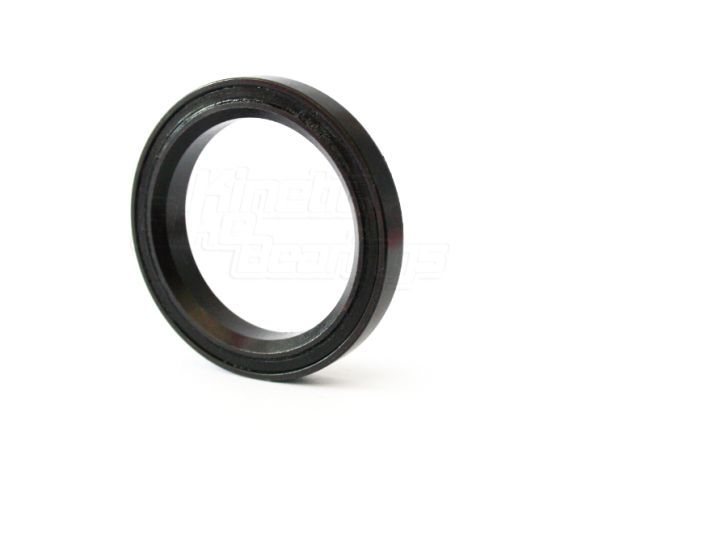

Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
