P25K | Headset Bearing
£12.49
1 in stock
USED ON HOPE TAPERED HEADSETS (LOWER BEARING) & 40 series Cane Creek
Also known as: BAA0006K, HS1404K, ACB 6808 CC

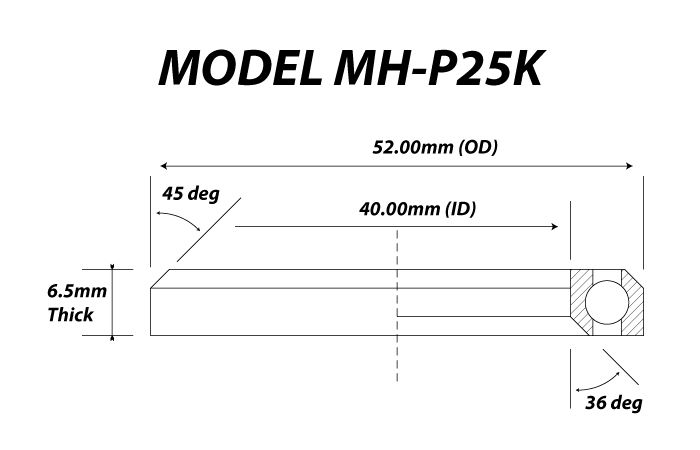

Inner x Outer x Depth (mm): 40 x 52 x 6.5
Inch Dia: 1 - 1 / 2”
Angle / Chamfer (Deg): 36 / 45
Material: Chromium Steel
Description
- Inner x Outer x Depth (mm): 40 x 52 x 6.5
- Inch Dia: 1-1/2”
- Angle / Chamfer (Deg): 36 / 45
- Bearing ID: 40.00mm
- Bearing OD: 52.00mm
- Bearing Thickness: 6.5mm
- Internal Angle: 36 Degrees
- External Angle: 45 Degrees
- Material: Bearing Steel
- Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
- Seal: Double-sealed 2RS
- Material: Chrome Steel 100Cr6 (Race & Balls)
- Cage Material: Nylon PA66
- Used On: Cane Creek 110 & 40 Series

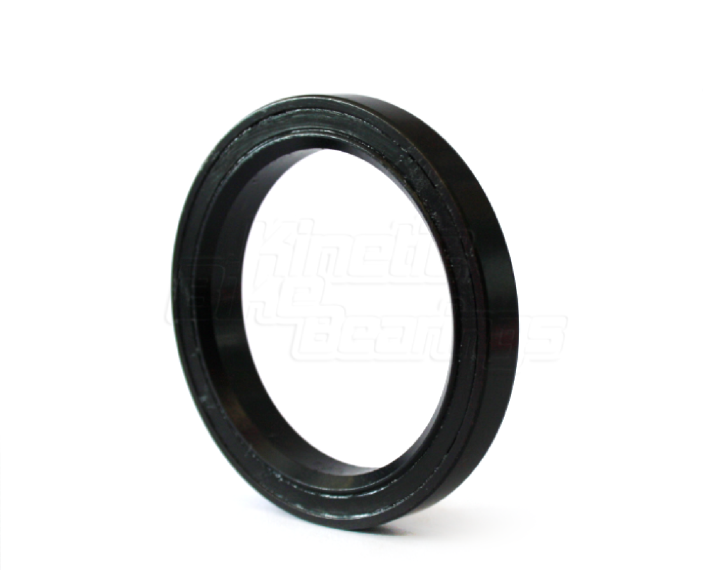

Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
