Add to all that, 21 speed Shimano gears, powerful disc brakes and quality components, the Turbine can’t wait to get warmed up!
| Frame & Fork | |
| Sizes: | 27.5 (650B) Wheel, 18″ Alloy Frame |
| Frame: | Falcon 6061 MTB Frame |

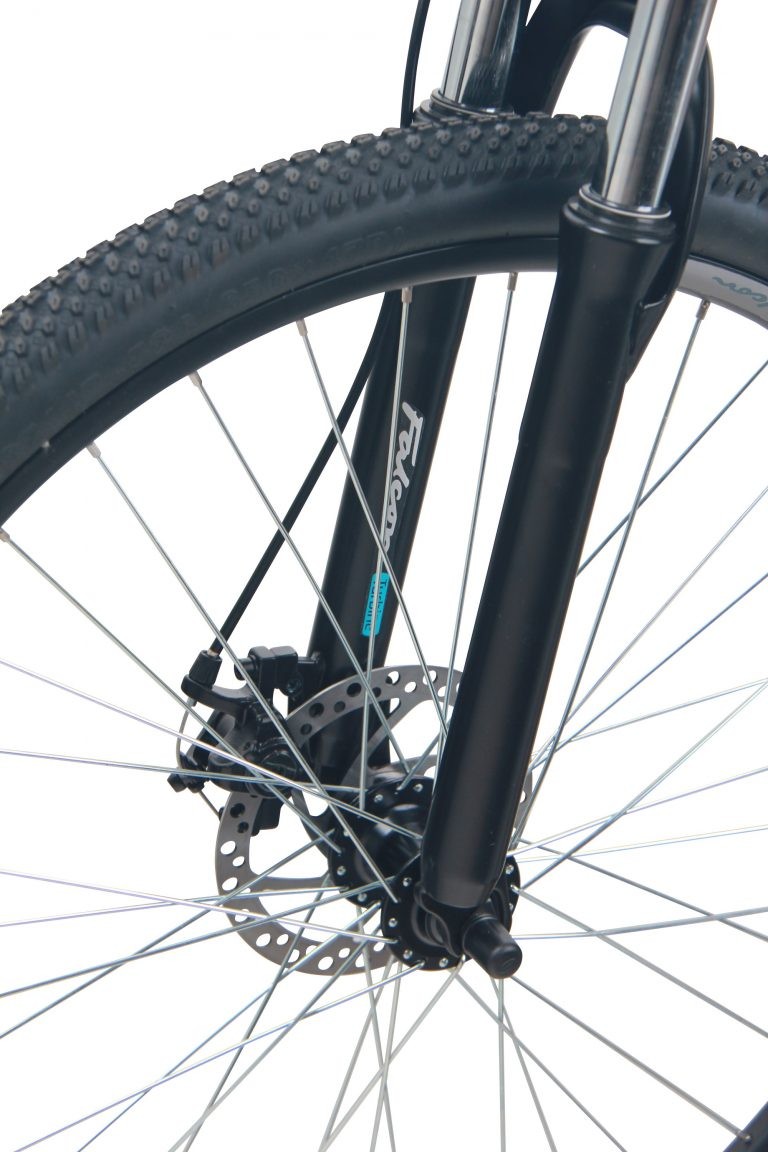

| Fork: | Suspension fork with disc mounts |
| Headset: | 1 1/8″ Aheadset |
| Steering | |
| Handlebar: | MTB Lo-Rise bar, 620mm wide |
| Stem: | Ahead Stem, 90mm extension |
| Grips: | Black MTB Grips |
| Transmission | |

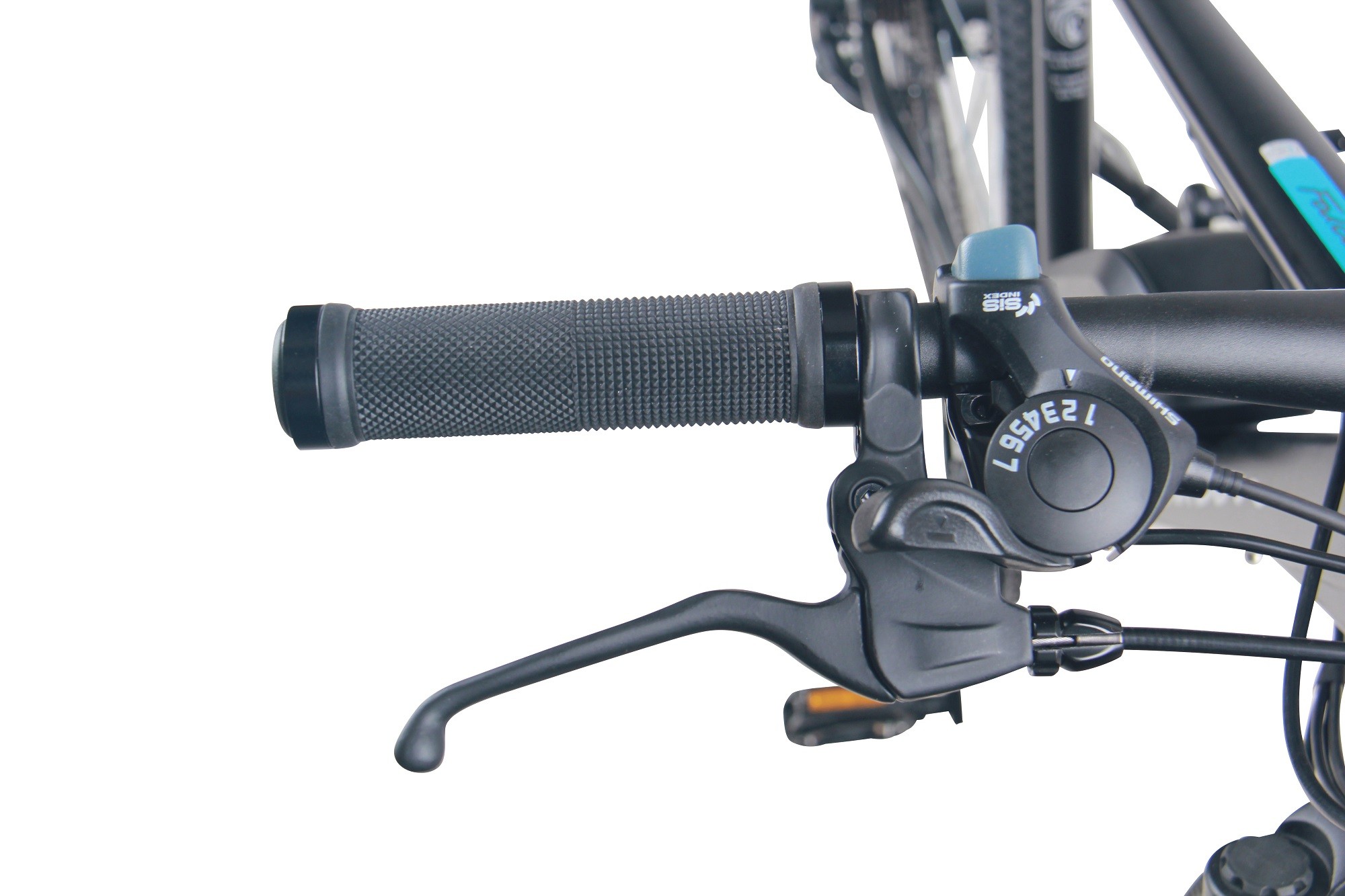

| Shifters: | Shimano SL-TX30 Thumbshifter 7x3spd |
| Front Derailleur: | Shimano FD-TY510 3spd |
| Rear Derailleur; | Shimano RD-TY300 7spd |
| Freewheel: | Shimano 7spd 14-28T |
| Chainwheel: | Prowheel 170mm Crank, 28x38x48T Chainring |
| Bottom Bracket/Motor | Cartridge BB 68x119mm |
| Display | 36V LED Display; on/off, 3 levels of power assistance, battery indicator and “walk assist” button |
| Controller | 36V, Limited to 15.5mph (25kmh) maximum assistance |
| Sensor | 12 point pedal sensor |
| Battery | 36V 10Ah Downtube Battery, with battery indicator |
| Chain: | KMC |
| Charge Time: | 5hrs (but top up as required) |
| Range: | 40-45km |
| Brakes: | Mechanical Disc Brakes, 160mm rotors |
| Brake levers: | Alloy Brake Levers with automatic motor cut-off |
| Pedals: | 9/16” Axle |
| Wheels | |
| Front Hub: | 36H, Alloy |

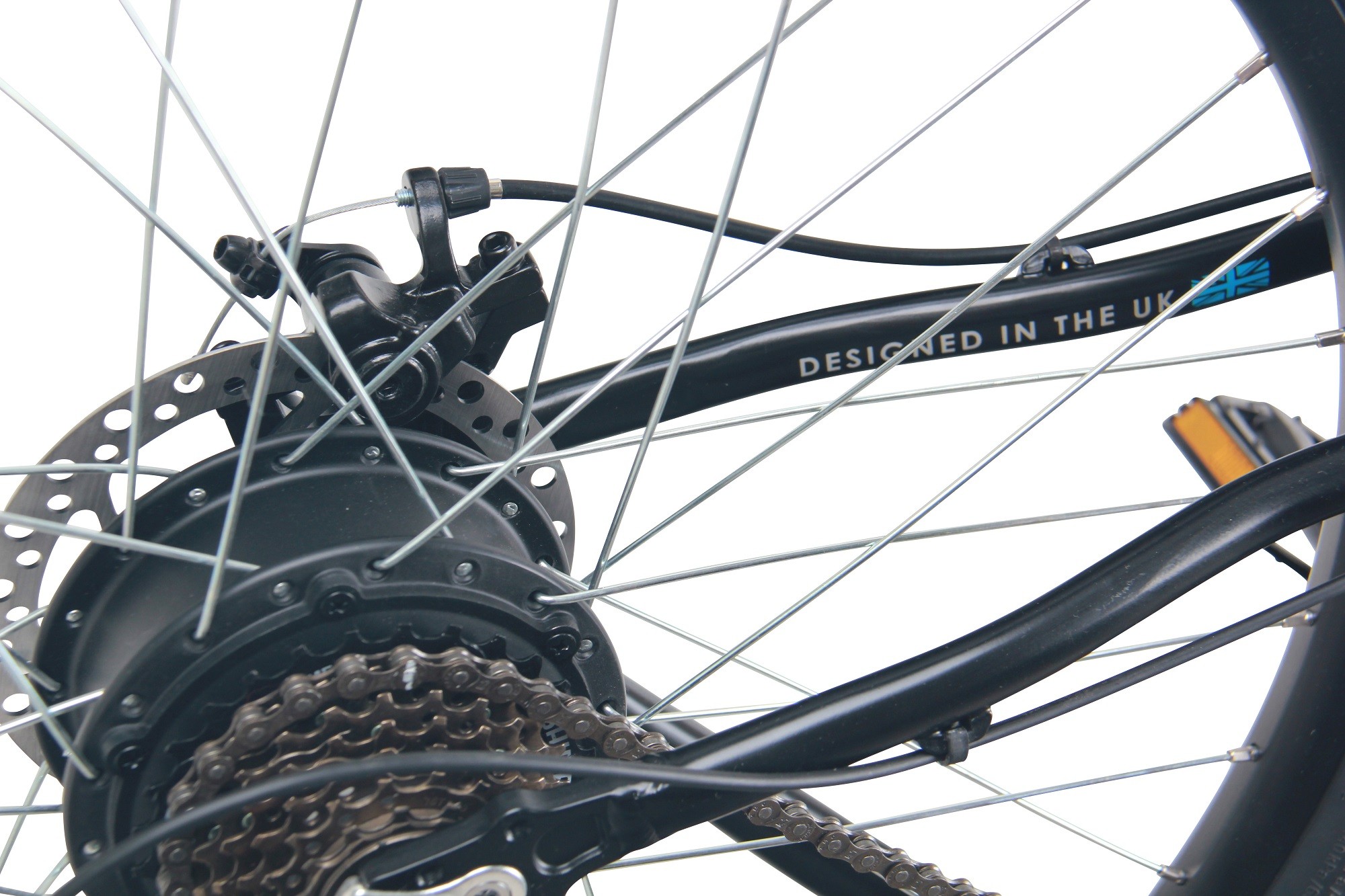

| Rear Hub: | 36V 250W Motor, 36H Alloy body |
| Rims: | Double Wall Alloy, 27.5″ (disc only) |
| Spokes: | 13G |
| Tyres: | 27.5 x 1.95″ Multi-Surface MTB tyres |
| Saddle | |
| Seat Post: | Alloy Micro Adjust, 27.2mm x 300mm |
| Saddle: | Falcon MTB saddle. |
| Other | |
| Accessories | 240V Mains charger, front mudguard mounts, chainstay mounted kickstand. |
| Weight | 21kg (including battery) |
This Bike Is Only Available In Store Please Contact Us For Availability
